Description

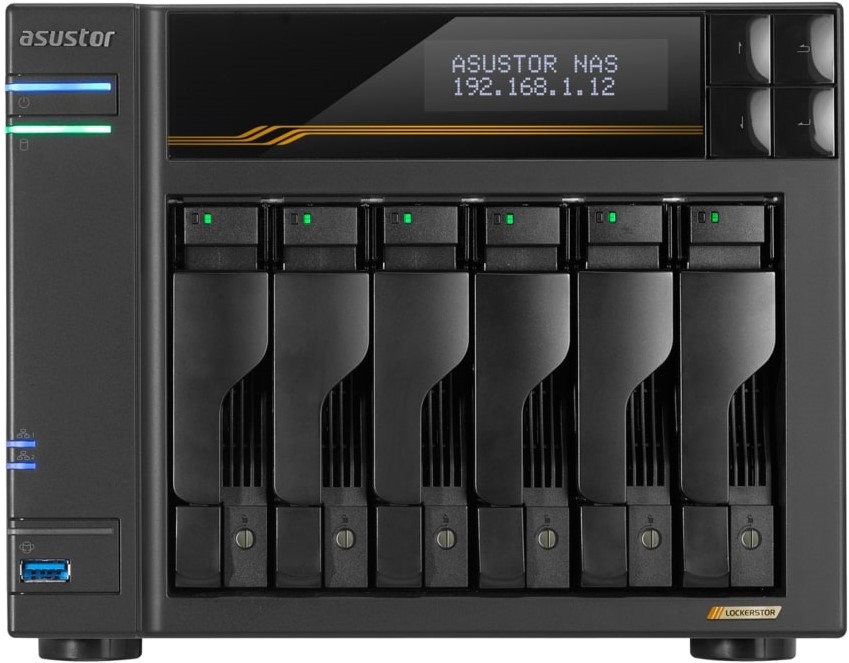

Asustor Lockerstor 6 Gen 3 NAS Enclosure – Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz – 3.8 GHz Turbo, 16GB of server-grade DDR5-4800 ECC memory (Max 64GB), Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0, 2x USB4 ports at 40 Gbps, 3x USB 3.2 Gen 2 Type-A at 10 Gbps, 2x 10-Gigabit Ethernet, 2x 5-Gigabit Ethernet, Supports Wake on LAN and Wake on WAN (5 GbE), Retail Box, 3 Years Warranty
Product Overview
ASUSTOR Lockerstor Gen3 NAS features a quad-core AMD Ryzen V3C14 CPU up to 3.8 GHz, 16GB ECC DDR5 memory, and quad M.2 PCIe 4.0 NVMe SSD slots for exceptional speed and reliability. With dual 10GbE and dual 5GbE ports, plus USB4 and advanced ECC error correction, it delivers enterprise-grade performance and connectivity. PQC Hybrid TLS encryption and robust ADM support ensure post-quantum security, making this NAS future-ready for quantum threats.
Features
•Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz – 3.8 GHz Turbo
•16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
•Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
•2x USB4 ports at 40 Gbps
•3x USB 3.2 Gen 2 Type-A at 10 Gbps
•2x 10-Gigabit Ethernet
•2x 5-Gigabit Ethernet
•Supports Wake on LAN and Wake on WAN (5 GbE)
Specifications
•Product Code: AS6806T
•Description: Asustor Lockerstor 6 Gen 3 NAS Enclosure
CPU
•CPU Model: AMD Ryzen V3C14
•CPU Architecture: x64 64-bit
•CPU Frequency: Quad-Core 2.3GHz (burst up 3.8 GHz)
Memory
•Memory: 16GB ECC DDR5-4800 SO-DIMM
•Memory Module Pre-installed: 16GB (1x 16GB)
•Total Memory Slots: 2
•Memory Expandable up to 64GB
•Support mixed capacity
•Supports ECC memory
•Flash Memory: 8GB eMMC
Storage
•Drive Bays: 6
•M.2 Drive Slots: 4
Compatible Drive Type
•3.5″ SATA HDD
•2.5″ SATA HDD
•2.5″ SATA SSD
•M.2 2280 NVMe
•M.2 PCIe Interface: PCIe 4.0 x1
•Maximum Drive Bays with Expansion Unit: 18
•Supports Hot Swappable Drives
Network
•2x 5 Gigabit Ethernet (5G/2.5G/1G/100M)
•2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
•PCIe Expansion Slots: 1x for optional expansion 10 GbE card
•System Fan: 1x 120mm
•LCD Panel
•Power Supply Unit / Adapter: 250W x1
•Input Power Voltage: 100V to 240V AC
•Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Power Consumption
•45 W (Operation)
•2.3 W (Sleep Mode)
•Noise Level: 18.1dB (HDD idle)
•Operation Temperature: 0°C~40°C (32°F~104°F)
•Storage Temperature: -20°C~70°C (-4°F~158°F)
•Humidity: 5% to 95% RH
•Size: 185.5 (H) x 233 (W) x 230 (D) mm
•Weight: 4.4 kg / 9.7 lb
•Warranty: 3 Years
