Description

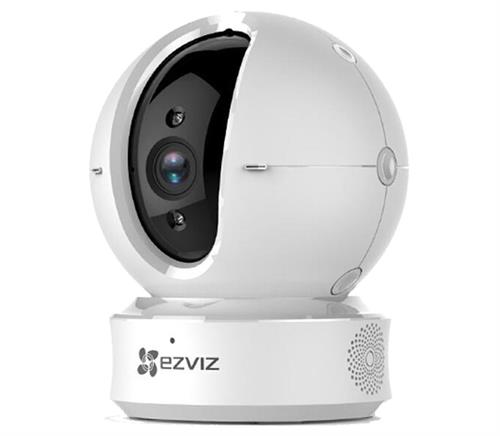

EZVIZ C6CN 2MP WiFi PTZ Camera -360° Horizontal View, 720p, Two-way audio, Physical privacy mask, Auto PT tracking, 10 meters IR range (for night use), upto 128G SD card supported, Retail Box, 1 Year Warranty
Product Overview
The EZVIZ C6CN 2MP WiFi PTZ Camera offers 720p HD video with a 1/4″ CMOS sensor, 4mm lens, and wide pan (340°) and tilt (120°) angles for flexible surveillance. It features IR night vision up to 10 meters, motion detection smart alarms, and supports microSD cards up to 128GB for local storage. With Wi-Fi connectivity, digital WDR, and advanced security protocols, it ensures reliable indoor monitoring with easy wireless setup.
Specifications
•Product Code: CS-CV246(B0-1C1WFR)
•Description: EZVIZ C6CN 2MP WiFi PTZ Camera
•Image Sensor: 1/4″ Progressive Scan CMOS
•Shutter Speed: Self-adaptive shutter
•Lens: 4mm@ F2.2, Diagonal angle: 90°
•PT Angle: Pan: 340°, Tilt: 120°
•Lens Mount: M12
•Day & Night: IR-cut filter with auto-switching
•DNR: 3D DNR
•WDR: Digital WDR
Compression
•Video Compression: H.264
•H.264 Type: Main profile
•Video Bit Rate: HD, Balanced and Smooth bit rate
•Max. Resolution: 1280×720
•Image setting: Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
•BLC: Support
Network
•Storage: Support Micro SD card (Max. 128G)
•Smart Alarm: Motion detection
•Wi-Fi Pairing: SmartConfig (Wi-Fi One-Key Configuration)/AP paring
•Protocol: EZVIZ cloud proprietary protocol
•Interface Protocol: EZVIZ cloud proprietary protocol
•General Features: Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
•Minimum Network Requirements: 2Mbps
Wi-Fi
•Standard: IEEE802.11b, 802.11g, 802.11n
•Frequency Range: 2.4 GHz ~ 2.4835 GHz
•Channel Bandwidth: Supports 20MHz
•Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
•Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps
•Operating Conditions: -10°C ~ 45°C, Humidity 95% or less (non-condensing)
•Power Supply: DC 5V±10%
•Power Consumption: Max. 5.5W
•IR Range: Max. 10 meters
•Product Dimensions: 87.7mm x 87.7mm x 112.7mm
•Packaging Dimensions: 106mm x 106mm x 190mm
•Weight: 256g
