Description
8-ch 720p Mini 1U H.265 DVR Deep learning based human and vehicle targets classification of Motion Detection 2.0 H.265 Pro+/H.265 Pro/H.265 video compression HDTVI/AHD/CVI/CVBS/IP video input Audio via coaxial cable Up to 10-ch IP camera input (up to 5 MP) Encoding ability up to 1080p lite @ 15 fps Max. 1200 m for 720p HDTVI signal Motion Detection 2.0 Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; SATA 1 SATA interface Capacity Up to 4 TB capacity for each disk
Product Overview

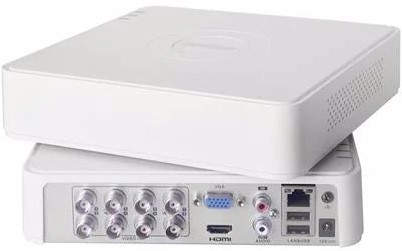

The 8-ch 720p Mini 1U H.265 DVR features deep learning-based motion detection 2.0, enabling accurate human and vehicle classification to reduce false alarms. It supports H.265 Pro+/H.265 Pro/H.265 video compression and various video inputs, including HDTVI, AHD, CVI, CVBS, and IP, with up to 10 IP camera inputs. Equipped with a SATA interface for storage up to 4TB, it offers efficient recording and playback capabilities.
Features
•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Audio via coaxial cable
•Up to 10-ch IP camera inputs (up to 5 MP)
•Up to 1080p Lite@15 fps encoding capability
•Max. 1200 m for 720p HDTVI signal
Specifications
•Product Code: DS-7108HGHI-M1
•Description: Hikvision DS-7108HGHI-M1 DVR
•Power Supply: 12 VDC, 1.5 A
•Consumption: ≤ 17 W (without HDD)
•Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)
•Working Humidity: 10% to 90%
•Dimension (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
•Weight: ≤ 1 kg (without HDD, 2.2 lb.)
•Total Bandwidth: 72 Mbps
•Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnPTM, HTTPS
•Remote Connection: 64
•Network Interfac : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
•ideo Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF
•For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate
•Main stream:
•For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
•4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
•Video Bitrate : 32 Kbps to 4 Mbps
•Stream Type : Video, Video & Audio
•Audio Compression : G.711u
•Audio Bitrate : 64 Kbps
