Description

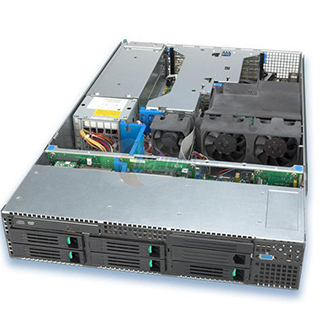

Intel® Integrated Server Platform S5000PAL (Alcolu) And SR2500 (2U) Chassis – DDR2-533/667 FB DIMM SATA/SAS. Ducting, Cables, Slimline Tray, Low Profile Riser, Full Height PCI-X Riser, SATA/SAS Backplane, Drive Carriers & Standard Front Control Panel.
Specifications:
Model
• Brand: Intel
• Model: SR2500ALBRP
CPU Supported
• CPU Type: Dual Intel Xeon
• FSB: 1333/1066 MHz
Chipset
• North Bridge: Intel 5000P
Memory Supported
• Memory Slots: 8 x 240Pin
• Max Memory Supported: 32GB
• Memory Type Supported: DDRII 667/533
• ECC Supported
• Registered: FB-DIMM
Graphics
• GPU/VPU: ATI with 16MB memory
Expansion Slots
• PCI Express
• 2 x Low Profile PCI Express x8
• 1 x I/O Expansion Module Slot (PCI Express x4)
Communications
• First LAN: 2 x Intel PRO/1000
Expansion Bays
• 3.5″ Bays: 5 x 3.5″ hot-swap SAS/SATA Flex-bay
Power Supply
• Max. Power: 750-watt, dual-line cord 1+1 PFC
Features
• HDD Interface:
• SATA/SAS Passive Midplane with hot-swap Backplane
Details
• Form Factor: 2U Rackmount
• Dimensions & Weight: 27.3″ x 16.9″ x 3.5″
