Description

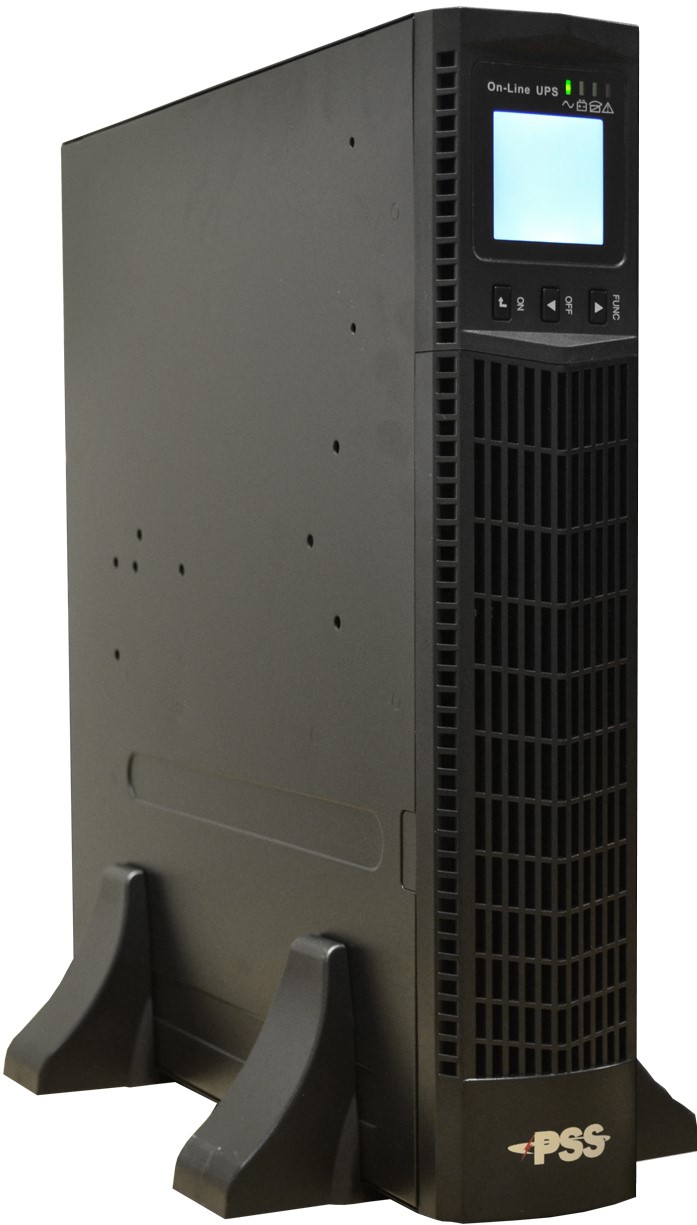

PSS M Series 3KVA True Online UPS- Rack Mount Or Tower Conversion Design, Single Phase With Ground, Input and Output Voltage 230V, Power Factor: 0.9, Capacity: 3KVA, 2700W, Voltage Range: 200-290VAC At Full Load, Frequency Range: 40-70Hz, Economic Operation Mode, Hot-Swappable Battery Pack, Full LCD Digital Display Control (DSP), 6 x 12V 9Ah Lead Acid Batteries , Rated Battery Voltage 72VDC , Colour Black, Retail Box , 12 Months Warranty
Product Overview
This sleek true online UPS uses double conversion technology to deliver pure sine wave output, ensuring maximum protection and stable power for critical server room and industrial equipment. Featuring rack-tower versatility, extended runtime options up to 4 hours, advanced LCD monitoring, and intelligent management with SNMP support, it’s designed for optimal reliability across IT, medical, and industrial applications. High efficiency (up to 94% in ECO mode), wide voltage range, and comprehensive safety features make it an ideal power backup solution for demanding environments.
Application
PC’s, Workstations, Network Centres, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems
Features
•Optimized Battery Configuration: 3KVA-72V
•Emergency Shutdown Through Remote Emergency Power-Off (EPO)
•Port Three Segment Charging Mode To Increase Battery Service Life
•Optimize Recharge Time Diverse Options Of Accessories, Intelligent Management
•Intelligent Slot – Optional SNMP/Dry Contact Board Input Neutral And Live Wires Reverse Detection
•Economic Operation Mode (ECO
•Wide Input Voltage Range
•Self-Testing On UPS Start-Up
•Cold Start (DC) Output Voltage Can Be Set
•Full Digital Control (DSP) M-Series On-Line UPS
•Design: Sleek, True On-Line UPS With Double Conversion Technology For Power Stabilization.
•Output: Pure Sine Wave On Mains Or Battery.
•Runtime: Internal Batteries Or Extended Battery Banks For Up To 4 Hours.
Specfications
•Product Code: M3RT
•Description: M Series 3KVA Online Rack/Tower UPS
•Capacity: 3KVA (2700W)
•Voltage Range: 200-290VAC at full load
•Frequency Range: 40-70Hz
•Efficiency: Up to 94% in ECO mode
•Battery Type: 12V/9Ah x 6
•Recharge Time: 5 hours
•Noise Level: <55dB at 1 meter
•Operating Environment: 0-40°C, 0-90% relative humidity (non-condensing) Additional Information:
•Audible alarms for battery mode, low battery, overload, and faults.
•Dimensions: 440 x 710 x 86.5mm
•Net/Gross Weight: 41 / 44Kg
•Package dimensions and weights provided for each model.
•Safety certifications and modular connectors included.
