Description
Solarix Esenser Pre-Built 5.5KVA Power Board Solution – 100A MPPT Solar Charge Controller, 5500w Rated Power, Maximum Charge Current 100A, OffGrid 145VDC, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), Plug Socket with 2 Pin and USB Ports, Wall Bracket Included, Brown Installer Box, Retail Box, 1 Year Limited Warranty
Product Overview

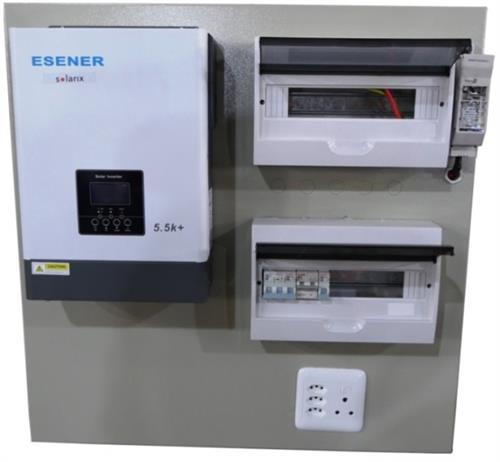

The Solarix Esener Pre-Built 5.5KVA Power Board Solution is an efficient off-grid power system featuring a 100A MPPT solar charge controller and a rated output of 5500W. It includes a pre-wired AC/DC ready distribution board with a 40A AC UPS changeover for reliable power management. The solution offers plug sockets with USB ports and comes with a wall bracket for easy installation. With a one-year limited warranty, it’s perfect for those looking to harness solar energy effectively.
Specifications
• Product Code : SOLPBPLUSES55KVA
• Product Overview : Solarix Esenser Pre-Built 5.5KVA Power Board Solution
• Model : Solarix Esener 5.5KVA 48VDC 100A Parallel Inverter
• Rated Power : 5.5KVA / 5500W
• Input Voltage : 48V DC
• Output Waveform : Pure Sine Wave
• Charge Controller : 100A MPPT (Maximum Power Point Tracking)
• Maximum Charge Current : 100A
• System Type : Off-Grid Solar Ready
• Parallel Capability : Supports up to 12 units (Single or Three Phase)
• Pre-Wired DB Board : AC/DC Ready with 40A AC UPS Changeover
• Protection Features : A/C Input Circuit Breaker, DC Disconnect Fuse
• Battery Compatibility : Supports Gel AGM, Lead Acid, or 48V Lithium Battery Packs
• Connectivity Options : Plug Socket with 2-Pin and USB Ports
• Installation Design : Wall-Mounted Semi Plug-and-Play Power Board Solution
• Efficiency Features : Saves ~8 hours of installation time with factory pre-wiring
• Monitoring & Communication : Wi-Fi/GPRS (optional), RS485 for Battery Management System (BMS)
• Accessories Included : Wall Bracket, Installer Box
• Warranty : 1-Year Limited Warranty
