Description

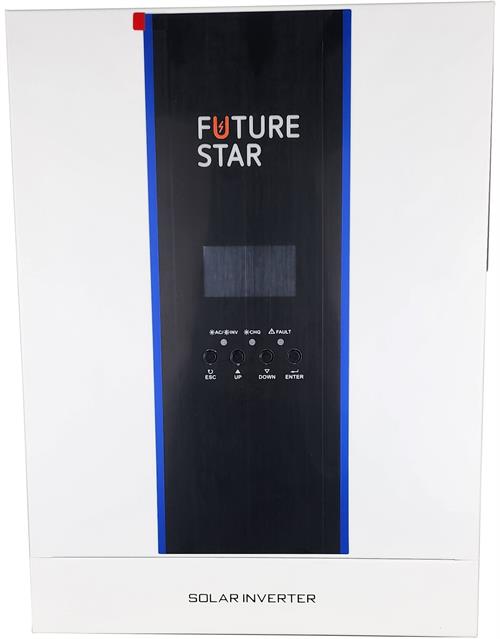

Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter- Off-Grid Solar Inverter 60A PWM Solar Charge Controller, 3000w Rated Power, Max Watt Output 3.5kW, Peak Efficiency 90%, DC input of 24VDC, AC Output 230VAC at 50/60Hz, DC Output : 27VDC, 60A, Solar Charger Max. Charge Current : 100A, Auto Restart Function, Wall Mounting Unit, and 6 Months Warranty
Product Overview
The Solarix FutureStar 3.5KVA Pure Sine Wave Inverter is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. It’s comprehensive LCD display offers user-configurable acceptable and .easy-accessible button operation such as battery charging current.AC/solar charger priority, and acceptable input voltage based on different applications.
Features
•3.55KVA 24VDC 60A Pure Sine Wave Inverter
•3000w Rated Power
•Max Watt Output 3.5kW Peak Efficiency 90%
•60A PWM Solar Charge Controller
•Voltage: 230V AC and Battery Voltage: 24VDC
•Nominal PV Voltage 100VDC
•AC Charging Current Maximum 60A
•Configurable AC Solar Charger Priority Via LCD Setting
•Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
•Configurable Battery Charging Current Based On Applications Via LCD Setting
•Configurable AC Solar Charger Priority Via LCD Setting
•Compatible To Mains Voltage Or Generator Power
•Auto Restart While AC Is Recovering
•Overload/Over Temperature/Short Circuit Protection
•Smart Battery Charger Design For Optimized Battery Performance
•Cold Start Function
Specifications
•Product Code : SOLFS3500VA
•Description Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter
•Product Type : Solar Inverter
•Model : 35KVA 24V Future Star
•Rated Power : 3500va
•DC Input : 24VDC, 138.9A
•AC Output : 230VAC, 50/60Hz, 13A
•Battery Type : Lithium/Gel/Lead Acid
•AC Input : 230VAC, 50/60Hz, 20 1A
•DC Output : 27VDC, 60A
•AC Output : 230VAC, 50/60Hz, 13A
•Solar Charger Max. Charge Current : 100A
•Rated Power : 3000W
•Min. Solar Voltage : 40VDC
•Max. Solar Voltage : 500VDC
•Temperature : -10 ~ 50DC
•Protective Class : I
•Degree of Protection : IP21
