Description
Solarix Nenergy 25.6V 100Ah LiFePo4 Single Battery Module- Total Usable Energy 2.56kWh, LCD Control Panel, Nominal Voltage 25.6V, Nominal Rated Capacity 100AH, Continuous Charging 20A, Continuous Discharging 50A, Working Voltage Range – 22.4V – 29.2V, Wall Mount or Floor Standing Design With Brackets Included , Design To Work Perfectly With 24V Invertors Up To 3.5KVA, Retail Box, 1 Year Limited Warranty
Product Overview

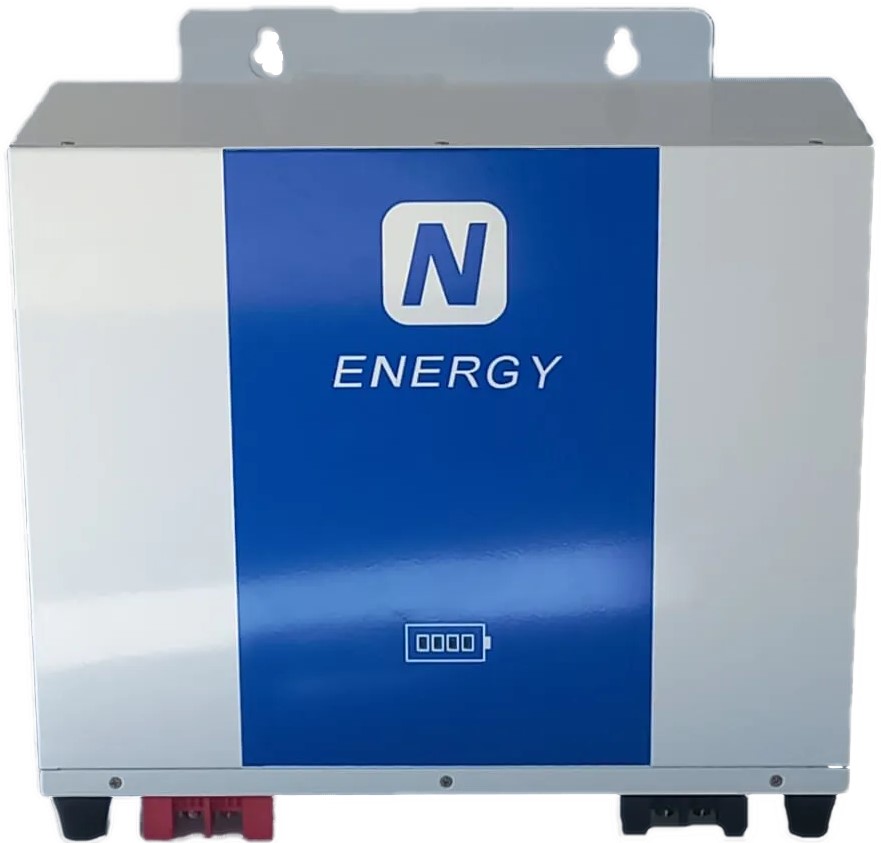

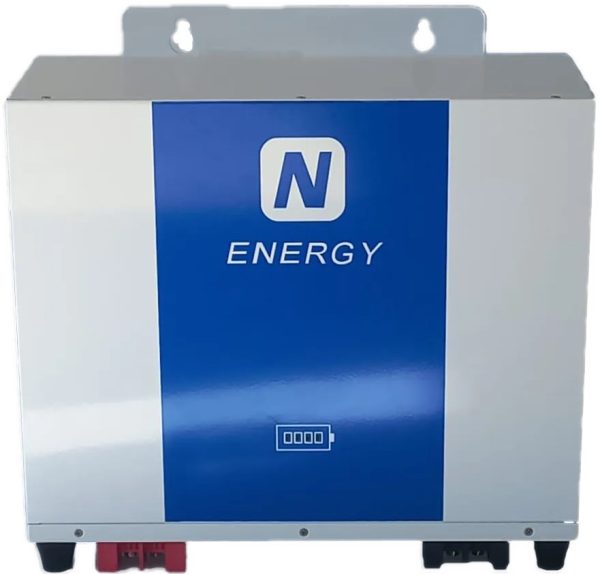

The Solarix Nenergy 25.6V 100Ah LiFePo4 Single Battery Module with Total Usable Energy 2.56kWh is designed for Floor Standing or Wall Mount Installations that is perfect for small to medium residential or office installations and design to work perfectly with 24V Invertors Up To 3.5KVA. The proven Lithium Iron Phosphate (LifePO4) chemical composition solution offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 4000 at 80% DOD. This Is Unit Is Designed For Single Use And Cannot Be Connected In Parallel.
User Define Settings
•Bulk Charge Voltage 29.2V
•Floating Voltage 28.4
•Cut-Off Voltage 22.5V
Specifications
• Stock Code SOLNE25100AH
• Description Solarix Nenergy 25.6V 100Ah LiFePo4 Single Battery Module
• Product Type Wall Mountable or Floor Standing 25.6V 100Ah Lithium Battery
• Design To Work Perfectly With 24V Invertors Up To 3.5KVA
• Total Usable Energy 2.56kWh
• LCD Control Panel
• Nominal Voltage 25.6V
• Nominal Rated Capacity 100AH
• Continuous Charging 20A
• Maximum Continuous Discharging 50A
• Working Voltage Range – 22.4V – 29.2V
• Design Life: -/+ 5 Years
• Wall Mount or Floor Standing Design
• Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
• Dimensions (LxWxH): 498 x 192 x 490
• Weight 27KG
• 1 Year Limited Warranty
• Stock Code SOLNE25100AH
• Description Solarix Nenergy 25.6V 100Ah LiFePo4 Single Battery Module
• Product Type Wall Mountable or Floor Standing 25.6V 100Ah Lithium Battery
• Design To Work Perfectly With 24V Invertors Up To 3.5KVA
• Total Usable Energy 2.56kWh
• LCD Control Panel
• Nominal Voltage 25.6V
• Nominal Rated Capacity 100AH
• Continuous Charging 20A
• Maximum Continuous Discharging 50A
• Working Voltage Range – 22.4V – 29.2V
• Design Life: -/+ 5 Years
• Wall Mount or Floor Standing Design
• Protection: Electronic Circuit Breaker, Voltage Protection, Current Limiting
• Dimensions (LxWxH): 498 x 192 x 490
• Weight 27KG
• 1 Year Limited Warranty
