Description

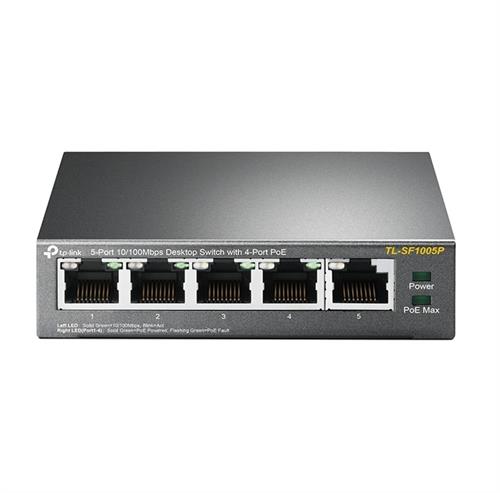

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is designed to enhance your network connectivity while providing Power over Ethernet (PoE) capabilities. It features five auto-negotiation RJ45 ports, with four supporting PoE to power devices like IP cameras and access points, delivering up to 15.4W per port.
Specifications
•Product code:TL-SF1005P
•Description: TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
•Transmission Distance Store-And-Forward
•Interface 5 10/100Mbps RJ45 Ports
•AUTO Negotiation/AUTO MDI/MDIX
•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
•PoE Ports (RJ45) Standard: 802.3af (15.4W)
•PoE Ports: Port1- Port4
•Total PoE Budget: 58W
•Mac Address Table 2K
•Switching Capacity 1Gbps
•Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in.
•(99.8 x 98 x 25 mm)
•Max Power Consumption 1.7W (no PD load)
•64.8W (with 58W PD load)
•Max Heat Dissipation 5.7BTU/h(no PD load)
•221.2BTU/h(with 58W PD load)
•Transmission Method Store-And-Forward
•Advanced Functions Compatible With IEEE 802.3af Compliant PDs
•Priority Function
•Mac Address Auto-Learning And Auto-Aging
•IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
