Description
TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+, Retail Box, 1 year Limited Warranty
Product Overview

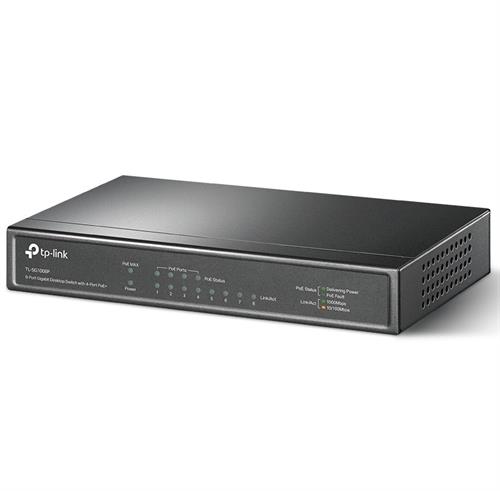

Expand your network with the TP-Link TL-SG1008P. This versatile switch offers four PoE+ ports to power devices like IP cameras or VoIP phones, along with standard Ethernet ports for additional connections. Its compact design and plug-and-play setup make it ideal for small offices and home networks.
Features
•8× 10/100/1000 Mbps RJ45 ports.
•4× PoE+ ports transfer data and power on the cables
•Works with IEEE 802.3af/at compliant PDs
•Plug and Play, no configuration and installation required
•802.1p/DSCP QoS enable smooth latency-sensitive traffic
•Supports PoE power up to 30 W for each PoE port
Specifications
•Product code:TL-SG1008P
•Description: TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+
•Interface 8× 10/100/1000 Mbps RJ45 Ports
•AUTO Negotiation
•AUTO MDI/MDIX
•Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Physical Security Lock Yes
•External Power Supply External power adapter
•(Output: 54VDC / 1.3A)
•Packet Forwarding Rate 11.904 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af/at compliant
•PoE Ports: ports 1–4
•Power budget for all PoE ports: 64 W
•Mac Address Table 4K
•Jumbo Frame 16 KB
•Switching Capacity 16 Gbps
•Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in
•(171×98×27 mm)
•Max Power Consumption
•5.4 W (with no PD connected)
•75 W (with 64W PD connected)
•Max Heat Dissipation
•18.4 BTU/h (with no PD connected)
•225.8 BTU/h (with 64 W PD connected)
•Transmission Method Store-And-Forward
•Compatible With IEEE 802.3af/at Compliant PDs
•IGMP Snooping
•Mac Address Auto-Learning And Auto-Aging
•IEEE802.3x Flow Control
•802.1p/DSCP QoS
