Description

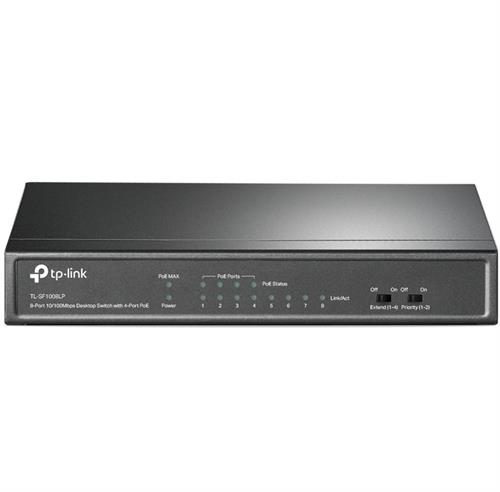

TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE provides an easy and affordable way to expand your wired network with Power over Ethernet (PoE) capabilities. It features 8 auto-negotiation RJ45 ports with 4 PoE-enabled ports that can power and connect PoE-compatible devices like IP cameras, VoIP phones, and wireless access points.
Specifications
•Product code: TL-SF1008LP
•Description: TP-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
•8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
•AUTO Negotiation
•AUTO MDI/MDIX
•Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Physical Security Lock Yes
•External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
•Packet Forwarding Rate 1.1904 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af compliant
•PoE Ports: Ports 1–4
•Power Supply: 41 W
•Mac Address Table 2K
•Jumbo Frame 2 KB
•Switching Capacity 1.6 Gbps
•Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
•Max Power Consumption
•2.2 W (220 V/ 50 Hz. no PD connected)
•47.1 W (220 V/ 50 Hz. with 41 W PD connected)
•Max Heat Dissipation
•7.5 BTU/h(no PD connected)
•160.61 BTU/h(with 41 W PD connected)
•Transmission Method Store-And-Forward
•Advanced Functions
•Compatible With IEEE 802.3af Compliant PDs
•Extend Mode Button (Ports 1–4)
•Priority Mode Button (Ports 1–2)
•Mac Address Auto-Learning and Auto-Aging
•IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
