Description

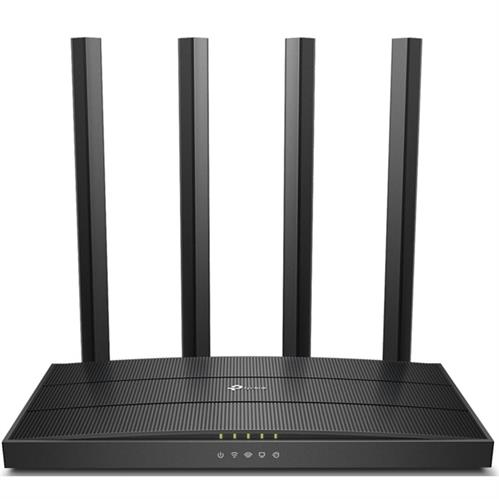

The TP-Link AC1900 Wireless MU-MIMO Wi-Fi Router delivers ultra-fast dual-band speeds of up to 1900 Mbps (1300 Mbps on 5 GHz and 600 Mbps on 2.4 GHz) for smooth streaming and gaming. Equipped with 3×3 MIMO and Beamforming technology, it ensures strong, reliable coverage and optimal performance for multiple devices. Advanced features like Smart Connect, Airtime Fairness, and Parental Controls offer efficient network management and seamless connectivity.
Specifications
•Product Code: ARCHER-C80
•Description: TP-Link Archer AC1900 Wireless MU-MIMO Wi-Fi Router
WIRELESS
Standards: Wi-Fi 5
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1900
• 5 GHz: 1300 Mbps (802.11ac)
• 2.4 GHz: 600 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
• Improves transmission power to strengthen signal coverage
WiFi Capacity: Medium
• Dual-Band
• Allocate devices to different bands for optimal performance
• 3×3 MU-MIMO
• Simultaneously communicates with multiple MU-MIMO clients
• Airtime Fairness
• Improves network efficiency by limiting excessive occupation
Working Modes
• Router Mode
• Access Point Mode
• 4 10/100/1000Mbps LAN Ports
• 1 10/100/1000Mbps WAN Port
Button
• Reset Button
• WPS/Wi-Fi Button
• Power On/off Button
External Power Supply
• US version 12V/1.5A
• EU version 12V/1A
Antenna: 4 Fixed Omni Directional Antennas
Processor: 1.2 GHz CPU
Ethernet Ports
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
Power:
• US Version: 12 V ? 1.5 A
• EU Version: 12 V ? 1 A
WIRELESS FEATURES
Wireless Standards
• IEEE 802.11a/n/ac 5 GHz
• IEEE 802.11b/g/n 2.4 GHz
Reception Sensitivity: 5 GHz:
• 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
• 11ac VHT20MCS0:-98dBm, 11ac VHT20MCS8:-72dBm
• 11ac VHT40MCS0:-92dBm, 11ac VHT40MCS9:-68dBm
• 11ac VHT80MCS0:-89dBm, 11ac VHT80MCS9:-64dBm
Reception Sensitivity: 2.4 GHz:
• 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
• 11n VHT20MCS0:-97dBm, 11n VHT20MCS8:-72dBm
• 11n VHT40MCS0:-92dBm, 11n VHT40MCS9:-67dBm
Transmit Power
• CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
• FCC:<30dBm(2.4 GHz & 5 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, WMM
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz
