Description

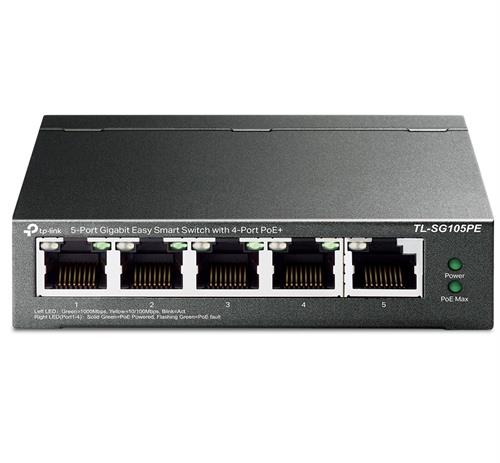

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Retail Box, 1 year Limited Warranty
Product Overview
Upgrade your network with the TP-Link TL-SG105PE. This compact switch offers four PoE+ ports, delivering power and data over a single cable for IP cameras, VoIP phones, and more. With its easy-to-use interface, you can monitor network traffic and prioritize devices effortlessly. This versatile switch is perfect for small offices, homes, and businesses seeking enhanced network performance.
Specifications
•Product code: TL-SG105PE
•Description: TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
•IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
•Interface Five 10/100/1000Mbps RJ45 Ports
•AUTO Negotiation/AUTO MDI/MDIX
•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Power Supply External Power Adapter (Output: 53.5 VDC/1.3 A)
•PoE Ports (RJ45) Standard: 802.3 af/at compliant
•PoE Ports: Port 1- Port 4
•PoE Power Budget: 65 W
•Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
•Max Power Consumption 4.5 W (with no PD connected)
•75.2 W (with 65 W PD connected)
•Max Heat Dissipation 15.4 BTU/h (with no PD connected)
•256.3 BTU/h (with 65 W PD connected)
•Switching Capacity 10 Gbps
•Packet Forwarding Rate 7.44 Mpps
•MAC Address Table 2 K
•Packet Buffer Memory 1.5 Mb
•Jumbo Frame 16 KB
•Quality of Service Support Port-Based/802.1p/DSCP priority
•Support 4 priority queues
•Rate Limit
•Storm Control
•L2 Features IGMP Snooping V1/V2/V3
•Static Link Aggregation
•Port Mirroring
•Cable Diagnostics
•Loop Prevention
•PoE Auto Recovery
•Extend Mode
•Management Web-based GUI
•Storage Temperature: -40℃~70℃ (-40℉~158℉)
•Operating Humidity: 10%~90%RH non-condensing
•Storage Humidity: 5%~95%RH non-condensing
