Description

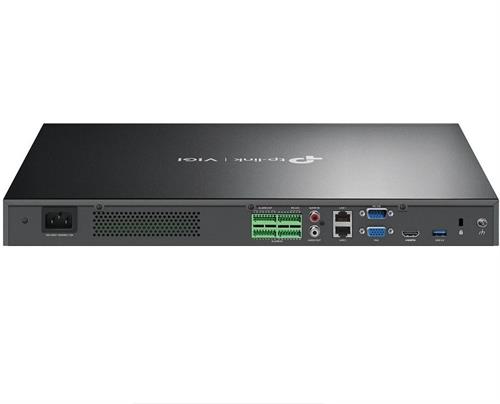

TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder, Retail Box , 1 year warranty
Product Overview
The TP-Link VIGI NVR4032H is a powerful 32-channel network video recorder designed for high-resolution surveillance, supporting up to 8MP video quality and H.265+ compression for efficient storage. With a robust bandwidth capacity of 320 Mbps, it allows simultaneous playback from multiple cameras and features smart detection for enhanced security management.
Specifications
•Product code: VIGI-NVR4032H
•Description: TP-Link VIGI NVR4032H VIGI 32 Channel Network Video Recorder,
•Incoming Bandwith: 320Mbps
•Outgoing Bandwidth: 320Mbps
•Network Protocols: UPnP (Plug and Play), NTP (Network Timing)
•Interoperability: ONVIF, CGI
•Mobile Phone Access: Android, iOS
•Browser: Chrome (57+), Firefox (52+), Edge (91+)
•Working Temperature: -10 – 55 C
•Working Humidity: 10% ~ 90% RH Non-Condensing
•Power Supply: 100 – 240VAC, 50 to 60HZ, 1.5A
•Power Consumption:
•5W (Without Disk)
•48W (With Disk)
•Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
•Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
•Backup Mode: Regular Backup, Video Clip Backup
•Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
•Network Interface: 2 x RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
•USB Interface: USB Interface
•Audio Interface: 1 x Audio In; 1 x Audio Out
•Alarm In/Out: 16/4
•Serial Interface: 1 x RS232
•Multi-View Display: 1/4/6/8/9/16/25/32/36
•Video Output Mode: HDMI/VGA Independent Output
•Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
•HDMI Output Resolution:
•1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
•VGA Output Resolution:
•1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
•Decoding Format: H.265+/H.265/ H.264+/H.264
•Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
•Synchronous Playback: 16-Channel
•Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
•SATA: 4 x SATA Interfaces
•Capacity: Up to 10TB Capacity for Each HDD
