Description

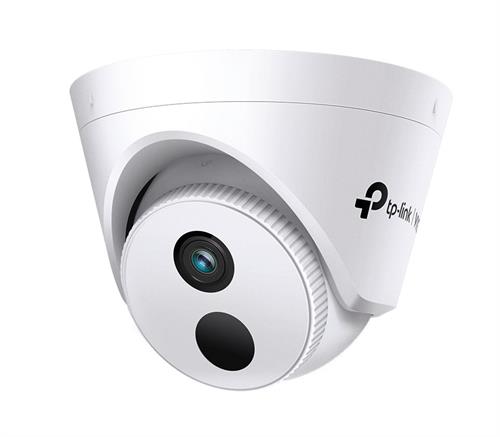

TP-Link VIGI-C430I(2.8MM) 3MP IR Turret Network Camera – 1/2.8” Progressive Scan CMOS Image Sensor, Fixed 2.8 mm Focal Length Lens with F2.2 Aperture, Viewing Angle 97.8° Horizontal, 52.9° Vertical, 117.9° Diagonal, Max Resolution 3MP (2304 × 1296), Video Compression H.265+/H.265/H.264+/H.264, Wide Dynamic Range DWDR, 3D Digital Noise Reduction, IR Night Vision Range up to 30m, Operating Temperature -30 to 60 °C, Dimensions 123 × 123 × 83 mm, Net Weight 0.19 kg, Retail Box, 1 Year Warranty
Product Overview
The TP-Link VIGI C430I captures sharp 3MP video with night vision for wide-area surveillance. Smart features like human/vehicle detection and corridor mode enhance monitoring and keep you informed of potential security events.
Specifications
•Product code: VIGI-C430I(2.8MM)
•Description: TP-Link VIGI C430I – 3MP 2.8mm IR Turret Network Camera
•Image Sensor 1/2.8” Progressive Scan CMOS
•Shutter Speed 1/3 to 1/10000 s
•Aperture 2.8 mm: F2.2
•4 mm: F2.0
•Lens 2.8 mm
•Lens Mount M12
•Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
•Day/Night Mechanism IR Cut Filter
•Day/Night Switch Unified/ Scheduled/ Auto
•Digital Noise Reduction 3D DNR
•IR Working Distance 30m
•Viewing Angle 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
•4mm: 82.5°/44.9°/99.3°(H/V/D)
•Type Fixed Focal Lens
•Focal Length 2.8mm
•Aperture 2.8 mm: F2.2
•4 mm: F2.0
•FOV 2.8mm:
•DORI Distance 2.8 mm
•Detect: 49 m (161 ft)
•Observe: 20 m (67 ft)
•Recognize: 10 m (32 ft)
•Identify: 5 m (16 ft)
•Detect: 65 m (214 ft)
•Observe: 27 m (89 ft)
•Recognize: 13 m (43 ft)
•Identify: 7 m (21 ft)
•Range Pan: 0° to 360°
•Tilt: 0° to 85°
•Rotate: 0° to 360°
•IR LED Quantity: 1
•Range: 30m
•Wavelength: 850nm
•H.265+ Main Stream Supported
•Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
•Image Parameters Switch Yes
•Web Browser Google Chrome® 57 and above
•Storage Temperature -40–60 °C
•Package Contents VIGI Network Camera
•Dimensions ( H X W X D ) 123 × 123 × 83 mm
•Net Weight 0.19 Kg
•Gross Weight 0.34 Kg
•Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
•Product Dimensions (L x W x H) 123× 83× 123 mm
•Video Compression Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
•Frame Rate & Resolutions
•Max. Resolution 3MP (2304 × 1296)
