Description

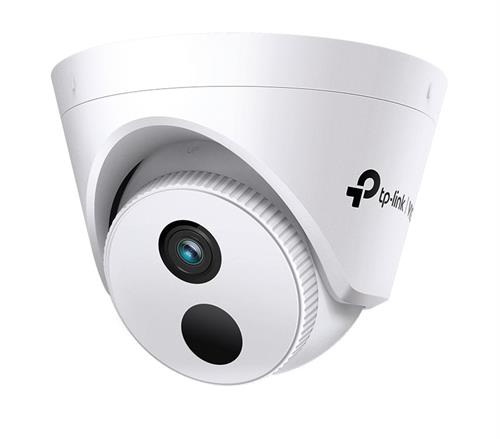

TP-Link VIGI C430I – 3MP 4mm IR Turret Network Camera, Retail Box, 1 Year Warranty
Product Overview
The TP-Link VIGI C430I captures sharp 3MP video with night vision for wide-area outdoor security. It offers two lens options (sold separately) for adapting to your specific needs, and smart features ensure you’re alerted to potential security events.
Specifications
•Product code: VIGI-C430I(4MM)
•Description: TP-Link VIGI C430I – 3MP 4mm IR Turret Network Camera
•Image Sensor 1/2.8” Progressive Scan CMOS
•Shutter Speed 1/3 to 1/10000 s
•Slow Shutter Yes
•Aperture 2.8 mm: F2.2
•4 mm: F2.0
•Lens 2.8 mm/ 4 mm
•Lens Mount M12
•Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
•Day/Night Mechanism IR Cut Filter
•Day/Night Switch Unified/ Scheduled/ Auto
•Digital Noise Reduction 3D DNR
•IR Working Distance 30m
•Viewing Angle 2.8mm: 97.8°/52.9°/117.9°(H/V/D)
•4mm: 82.5°/44.9°/99.3°(H/V/D)
•Detect: 49 m (161 ft)
•Observe: 20 m (67 ft)
•Recognize: 10 m (32 ft)
•Identify: 5 m (16 ft)
•4 mm Detect: 65 m (214 ft)
•Observe: 27 m (89 ft)
•Recognize: 13 m (43 ft)
•Identify: 7 m (21 ft)
•Range Pan: 0° to 360°
•Tilt: 0° to 85°
•Rotate: 0° to 360°
•Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
•H.264 Type Main Profile/High Profile
•H.264+ Main Stream Supported
•H.265 Type Main Profile
•H.265+ Main Stream Supported
•Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
•Wide Dynamic Range WDR
•SNR ≥ 52 dB
•Image Parameters Switch Yes
•Privacy Mask Up to 4 Masks
•Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
•RTSP, NTP, UPnP UDP, SSL/TLS
•Operating Temperature -30–60 °C
•Storage Temperature -40–60 °C
•Gross Weight 0.34 Kg
•Power Consumption 12V DC: Max 5W
•Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
•PoE (802.3af/at, class 0)
•Max. Resolution 3MP (2304 × 1296)
