Description
“VIGI Intelligent Solar Power Supply System Spec:60W/18V_690*516*30mm Solar Panel; 20Ah/3*12VDC Output Battery, More than 500 cycles; Charging Condition:-20?~45? (With intelligent auxiliary heat); Discharging Condition: -30?~60? (With intelligent auxiliary heat); 1*10/100Mbps RJ45 Function: Load ControlBattery Overtemperature ProtectionBattery level displayGeneration power displayLoad power displayGeneration power and Load power Statistics.”
Product Overview

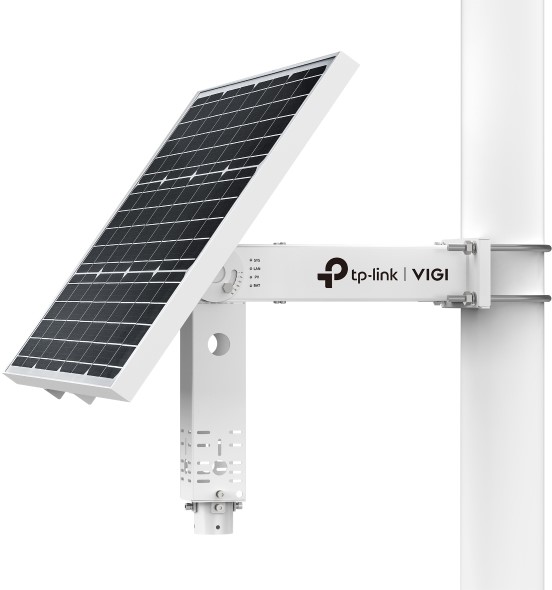

The VIGI Intelligent Solar Power Supply System features a 60W/18V solar panel and a robust 20Ah battery with over 500 charge cycles for reliable off-grid energy. It supports intelligent auxiliary heating for optimal charging and discharging performance in extreme temperatures, ranging from -30°C to 60°C. Equipped with smart load control, battery protection, and real-time display of battery level, generation, and load power statistics, it ensures efficient and safe power management.
Features
•60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
•3× DC Voltage Output Ports
•Modular Design
•5°/15°/25°/35°/45°/55° Adjustable Angles
•Intelligent Auxiliary Heating Technology
•Maximum Power Point Tracking (MPPT) Charging Controller
•IP66 Weatherproof
•Remote Management and Simple Installation
Specifications
•Product Code: VIGI-SP6020
•Description: VIGI Intelligent Solar Power Supply System
•Power: 60 W
•Voltage: 18 V
•Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in)
Battery
•Type: Lithium
•Intelligent Auxiliary Heat: Yes
•Battery Capacity : 20.8 Ah
•Voltage: 10.8 V
•Max. Output Voltage: 12.6 V
•Life: More than 500 cycles
•Dimension: 242×70×55 mm (9.5×2.8×2.2 in)
Charging Condition
•0°C~45°C
•-30°C~45°C (With intelligent auxiliary heating)
Discharging Condition
•-20°C~60°C
•-30°C~60°C (With intelligent auxiliary heating)
•Range: 5°/15°/25°/35°/45°/55°
Interface
• 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED
• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue
Certification
• CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
Weight
• Product Weight: 13 kg
• Package Weight: 14.5 kg
