Description

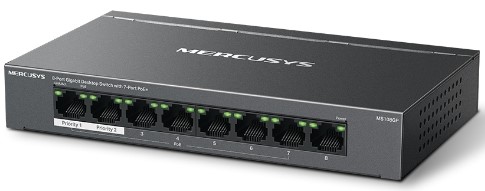

Mercusys 8-Port Gigabit Switch 7-POE – 8-Port Gigabit Desktop Switch with 7-Port PoE+ PORT: 7× Gigabit PoE+ Ports, 1× Gigabit Non-PoE Ports SPEC: Compatible with 802.3af/at PDs, 65 W PoE Power, Desktop Steel Case, Wall Mounting FEATURE: Extend Mode for 250m PoE Transmitting, Priority Port1-2, Isolation Mode, Plug and Play “
Product Overview
The MS108GP offers a robust networking solution with eight full Gigabit ports, allowing for fast data transfer and connectivity. It features seven PoE+ ports that can supply both data and power over a single cable, supporting up to 30 W per port and a total of 65 W. This switch is designed for durability with efficient heat dissipation, long-range capabilities up to 250 m in Extend Mode, and easy setup via plug-and-play functionality
Specifications
•Product Code: MS108GP
•Description: Mercusys 8-Port Gigabit Switch 7-POE
Hardware
•Dimensions (W X D X H): 171*98*27 mm
•PoE Ports: RJ45
•Standard: Compliant with 802.3 af/at Powered Devices
•PoE Ports: Port 1- Port 7
•PoE Power Budget: 65 W
•External Power Supply: External Power Adapter (Output: 53.5V/1.31A)
•Installation: Desktop, Wall Mount
•Standards and Protocols: IEEE 802.3x Flow Control
Data Rates
•10/100/1000 Mbps at Half Duplex
•20/200/2000 Mbps at Full Duplex
•Jumbo Frame: 9 KB
•Mac Address Table: 8K
•Max Power Consumption: 5.07W（220 V / 50 Hz, no PD connected）
77.33W（220 V / 50 Hz, with 65W PD connected）
•Max Heat Dissipation: 17.238 BTH/h （no PD connected)
262.922 BTH/h（with 65W PD connected）
