Description

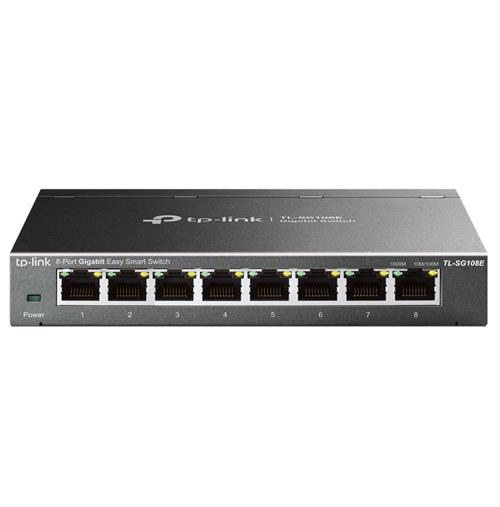

TP-Link 8-Port Gigabit Easy Smart Switch, Retail Box, 1 year Limited Warranty
Product Overview
The TP-Link 8-Port Gigabit Easy Smart Switch offers a seamless way to expand your network with eight 10/100/1000Mbps RJ45 ports, ensuring high-speed connectivity for multiple devices. Its plug-and-play design requires no configuration, making installation straightforward and hassle-free, while intelligent management features allow for easy network monitoring and traffic prioritization.
Specifications
•Product code: TL-SG108E
•Description: TP-Link 8-Port Gigabit Easy Smart Switch
•Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
•Interface 8 10/100/1000 Mbps RJ45 Ports
•AUTO Negotiation/AUTO MDI/MDIX
•Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100Ω STP (maximum 100m)
•Fan Quantity Fanless
•Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A)
•Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in.
•(158 × 101 × 25 mm)
•Max Power Consumption 2.7W
•Max Heat Dissipation 9.3 BTU/h
•Switching Capacity 16 Gbps
•Packet Forwarding Rate 11.9 Mpps
•MAC Address Table 4 K
•Packet Buffer Memory 1.5 Mb
•Quality of Service Support Port-based/802.1p/DSCP priority
•Support 4 priority queues
•Rate Limit
•Storm Control
•L2 Features IGMP Snooping V1/V2/V3
•Static Link Aggregation
•Port Mirroring
•Cable Diagnostics
•Loop Prevention
•VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
•MTU/Port/Tag VLAN
•Transmission Method Store-And-Forward
