Description

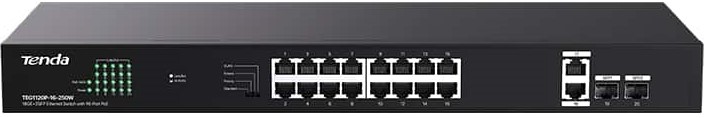

Tenda 16 PoE +2SFP Port Ethernet Switch – The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking
Product Overview
The Tenda TEG1120P-16-250W is an unmanaged gigabit Ethernet switch featuring 16 PoE+ ports delivering up to 30W per port with a total PoE power budget of 230W, plus 2 uplink RJ45 and 2 SFP ports for flexible high-speed connectivity. It supports IEEE 802.3af/at standards, offers four working modes including VLAN and Extend for network flexibility, and is ideal for powering IP cameras, access points, and IP phones in SMBs, hotels, schools, and parks. The switch supports plug-and-play installation, rack, wall, or desktop mounting, and includes advanced protections like 6KV lightning and ESD protection for reliable operation.
Features
•Standard 1U height, rack mounted switch
•Support four modes of Standard, Priority, Extend and VLAN
•Single port output power 30W, maximum output power 230W
•16×Gigabit PoE+ RJ45 ports,2×Gigabit RJ45 ports,and 2×SFP slots
Specifications
•Product Code: TE-TEG1120P-16-250W
•Description: Tenda 16 PoE Plus 2SFP Port Ethernet Switch
Network standards
•IEEE 802.3
•IEEE 802.3u
•IEEE 802.3ab
•IEEE 802.3x
•IEEE 802.3af
•IEEE 802.3at
LED Indicator
•Power
•Link/Act
•PoE MAX
Interfaces
•(18) 1GE RJ45 ports
•(2) 1GE SFP ports
•Transmission media: Recommended: CAT5/5e UTP or better
•Fan quantity: 1
•Dimension: 440mm*178mm*44mm
Level of protection
•Port: 6 KV
•Power：6 KV
•Forwarding mode: Store-and-forward
•Switch capacity: 40Gbps
•Packet forwarding rate: 29.8Mpps
•Buffer: 4Mb
•MAC address table: 8K
PoE budget
•Single port: AF: 15.4W, AT: 30W
•Whole device: 230W
•Power consumption: 250W
•Input voltage: 100-240V AC，50 / 60Hz
Mounting
•Rack mounting : support
•Desktop mounting: support
•Wall mounting: support
Environment
•Operating Temperature: 0℃~45℃
•Storage Temperature: -40℃~70℃
•Operating Humidity: 10%~90% non-condensing
•Storage Humidity: 5%~90% non-condensing
•Certification: FCC, CE, RoHS
