Description

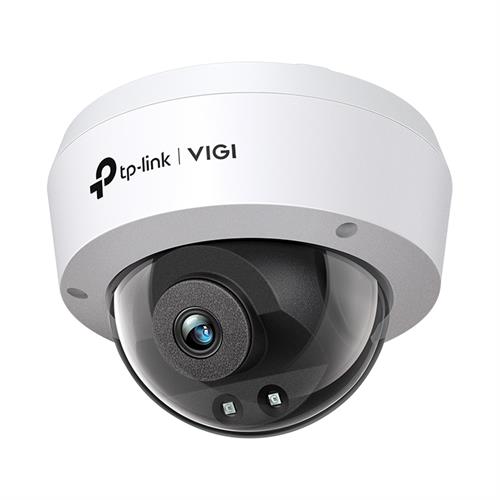

TP-Link VIGI C220I VIGI 2MP 2.8mm IR Dome Network Camera, Retail Box, 1 Year Warranty
Product Overview
The TP-Link VIGI C220I captures clear 2MP video with human/vehicle detection for reliable security. Its vandal-proof design, weatherproof housing, and PoE for easy installation make it ideal for various indoor/outdoor locations.
Specifications
•Product code: VIGI-C220I (2.8MM)
•Description: TP-Link VIGI C220I VIGI 2MP 2.8mm IR Dome Network Camera
•Image Sensor 1/3” Progressive Scan CMOS
•Shutter Speed 1/3 to 1/10000 s
•Slow Shutter Yes
•Aperture 2.8 mm: F2.2
•4 mm: F2.0
•Lens 2.8 mm/ 4 mm
•Lens Mount M12
•Digital Noise Reduction 3D DNR
•Weatherproof Rating IP67
•IR Working Distance 30m
•Viewing Angle 2.8mm: 88.2°/48.7°/106.5°(H/V/D)
•4mm: 74.6°/41.3°/88.1°(H/V/D)
•Type Fixed Focal Lens
•Focal Length 2.8 mm/4 mm
•Aperture 2.8 mm: F2.2
•4 mm: F2.0
•FOV 2.8 mm:
•DORI Distance 2.8 mm:
•Detect: 45 m (149 ft)
•Observe:19 m (62 ft)
•Recognize: 9 m (30 ft)
•Identify: 5 m (15 ft)
•Detect: 60 m (198 ft)
•Observe: 25 m (83 ft)
•Recognize: 12 m (40 ft)
•Identify: 6 m (20 ft)
•Range Pan: 0° to 355°
•Tilt: 0° to 75°
•IR LED Quantity: 2
•Range: 30m
•Wavelength: 850nm
•50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
•60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
•Resolution: 1920×1080, 1280×960, 1280×720
•50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
•H.265 Type Main Profile
•Storage Temperature -40–60 °C
•Dimensions ( H X W X D ) 115 × 115 × 86 mm
•Vandal Resistant IK10
•Protection IP67, IK10
•Product Dimensions (L x W x H) 115× 86× 115 mm
•Video Compression Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
•Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
•Resolution: 1920×1080, 1280×960, 1280×720
•Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
•Resolution: 704×576, 640×480, 352×288, 320×240
