Description
TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera – Maximum Resolution 2304 x 1296 Progressive Scan CMOS, Image Sensor 1/2.8″, Lens 2.8 mm (F1.6), Day/Night Switch Unified/Scheduled/Auto, Digital Noise Reduction 3D DNR, WDR DWDR, IR Working Distance 30m (2 IR LEDs, 850nm), Storage Temperature -40 to 60°C, Vandal Resistant IK08, Output Notification via Push, Dimensions 114 x 114 x 58 mm, Weight Net 0.23 kg, Gross 0.41 kg, Retail Box, 1 Year Warranty
Product overview

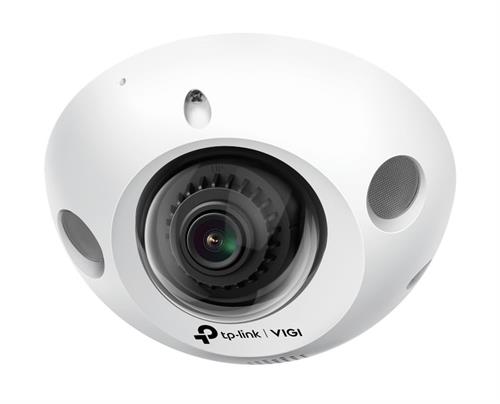

The TP-Link VIGI C230I Mini packs a powerful 3MP punch in a compact design, ideal for wide-angle surveillance in tight spaces. Smart features like human/vehicle detection and night vision enhance security and keep you informed.
Specifications
•Product code: VIGI-C230I MINI(2.8MM)
•Description: TP-Link VIGI C230I Mini 3MP 2.8mm IR Mini Dome Network Camera
•Image Sensor 1/2.8” Progressive Scan CMOS
•Lens 2.8 mm
•Day/Night Switch Unified/ Scheduled/ Auto
•Digital Noise Reduction 3D DNR
•WDR DWDR
•IR Working Distance 30m
•Shutter Speed 1/3 to 1/10000 s
•Aperture F1.6
•Lens Mount M12
•Minimum Illumination Color: 0.1 Lux; 0 Lux with IR
•ONVIF Yes
•API ONVIF
•Operating Temperature -30–60 °C
•Storage Temperature -40–60 °C
•Quick Start Guide
•Mounting Accessories
•Mounting Template
•Dimensions( H X W X D ) 114 × 114 × 58 mm
•Net Weight 0.23 kg
•Gross Weight 0.41 kg
•Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
•PoE (802.3af/at, class 0)
•Vandal Resistant IK08
•Protection IK08
•Power DC Power Port
•Output Notification Message Push
•Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
•Resolution: 704×576, 640×480, 352×288, 320×240
•Max. Resolution 3MP (2304 × 1296)
•Video Streaming 3 Main Streams
•Video Bit Rate 64 Kbps to 4 Mbps
•Audio Input Yes
•Audio Output Yes
•Audio Compression Yes
•Audio Sampling Rate 8KHz
•Environment Noise Filtering Yes
•Audio Bit Rate 64 Kbps(G.711 alaw)
•IR LED Quantity: 2
•Range: 30m
•Wavelength: 850nm
•DORI Distance 2.8mm ;
•Detect: 49 m (161 ft)
•Observe: 20 m (67 ft)
•Recognize: 10 m (32 ft)
•Identify: 5 m (16 ft)
•Range Pan: -30° to 30°
•Tilt: 0° to 85°
•Rotate: -15° to 15°
•Max. Resolution 2304 × 1296
