Description

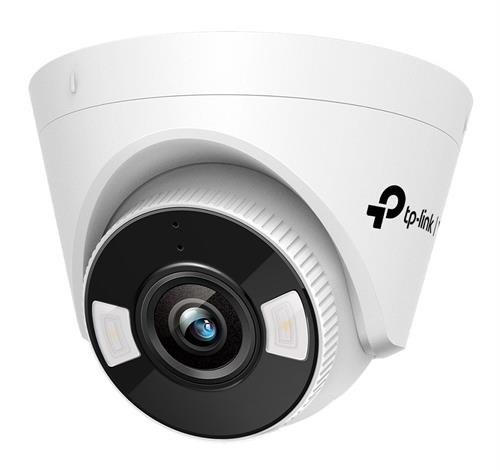

TP-Link VIGI C430 VIGI 3MP 2.8mm Full-Color Turret Network Camera, Retail Box, 1 Year Warranty
Product Overview
The TP-Link VIGI C430 captures sharp 3MP color video with night vision, even in darkness. Smart features like human/vehicle detection and two-way audio (microphone) keep you informed and in control.
Specifications
•Product code: VIGI-C430(2.8MM)
•Description: TP-Link VIGI C430 VIGI 3MP 2.8mm Full-Color Turret Network Camera
•Image Sensor 1/2.8” Progressive Scan CMOS
•Shutter Speed 1/3 to 1/10000 s
•Slow Shutter Yes
•Aperture 2.8 mm: F1.6
•Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light
•Day/Night Mechanism IR Cut Filter
•Day/Night Switch Unified/ Scheduled/ Auto
•Digital Noise Reduction 3D DNR
•WDR DWDR
•IR Working Distance 30m
•Viewing Angle 2.8mm: 107.5°/57.2°/128.7°(H/V/D)
•4mm: 89.1°/45.1°/106.9°(H/V/D)
•Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°
•Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
•Lens Mount M12
•DORI Distance 2.8 mm
•Detect: 52 m (170 ft)
•Observe: 22 m (71 ft)
•Recognize: 10 m (34 ft)
•Identify: 5 m (17 ft)
•Detect: 70 m (230 ft)
•Observe: 29 m (96 ft)
•Recognize: 14 m (46 ft)
•Identify: 7 m (23 ft)
•Range Pan: 0° to 360°
•Tilt: 0° to 85°
•Rotate: 0° to 360°
•Max. Resolution 2304 × 1296
•Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
•Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
•Resolution: 704×576, 640×480, 352×288, 320×240
•Main Stream: H.265+/H.265/H.264+/H.264
•Sub-Stream: H.265/H.264
•Wide Dynamic Range WDR
•Operating Temperature -30–60 °C
•Storage Temperature -40–60 °C
•Package Contents VIGI Network Camera
•Dimensions ( H X W X D ) 123 × 123 × 83 mm
•Net Weight 0.21 Kg
•Gross Weight 0.36 Kg
•Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
•Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
•Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
•Resolution: 704×576, 640×480, 352×288, 320×240
•Max. Resolution 3MP (2304 × 1296)
